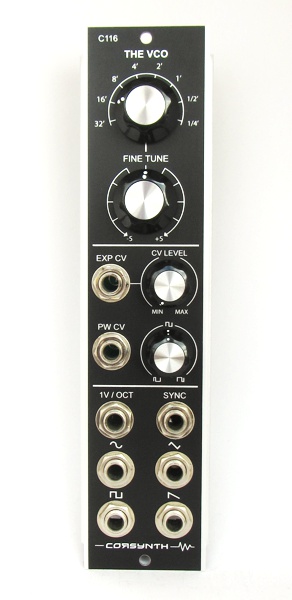

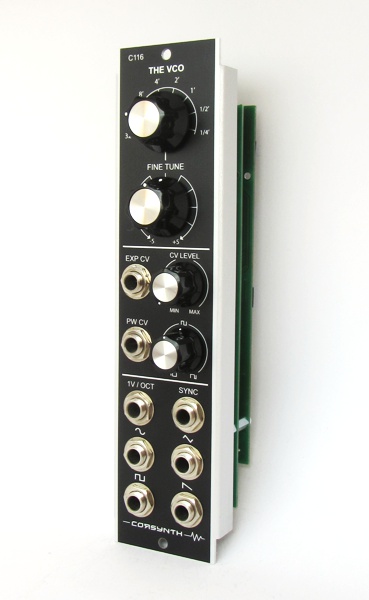

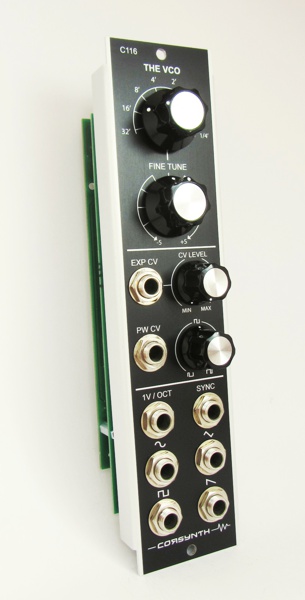

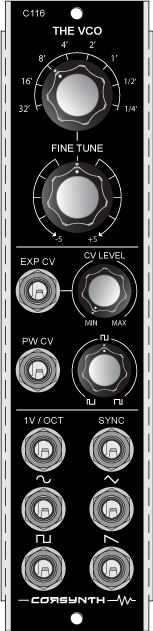

C116 THE VCO

This will be be the next Corsynth module: the C116 The VCO.

The C116 is a compact voltage controlled oscillator designed to provide all the essential features expected from an oscillator, without taking up too much space in your system.

While it is a saw-core oscillator, its design is completely different from the C104 Odyssey of Sound VCO.

The C116 also features diferent waveshaper circuits for the Sine and Pulse outputs. As a result, it produces a cleaner, more pure sine wave and a sharper, more aggressive pulse waveform.

Main characteristics :

• • • • • • Four simultaneous waveforms: sine, triangle, saw, and pulse

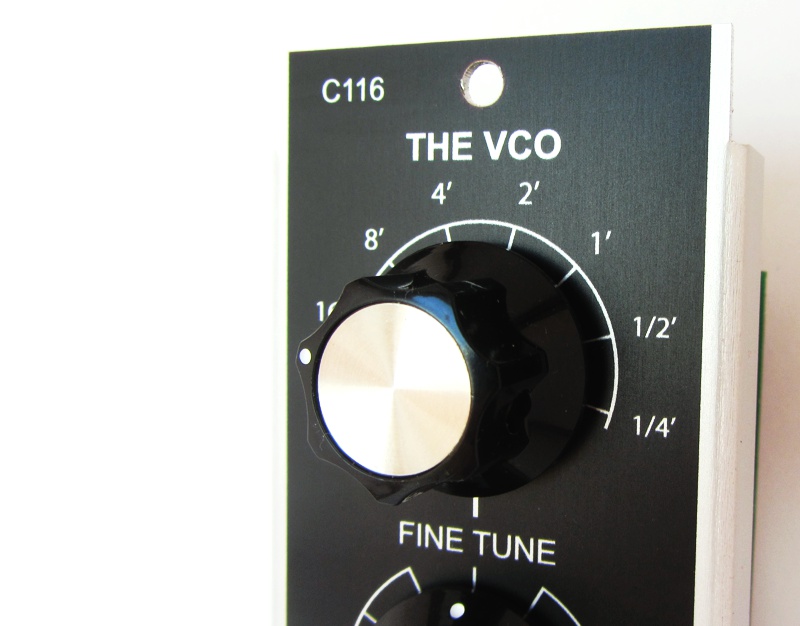

          • Rotary octave switch with a 7-octave range (C0–C7)

          • Pulse width range from 5% to 95%

          • High-quality exponential converter for accurate tracking

          • Dedicated 1V/Oct input

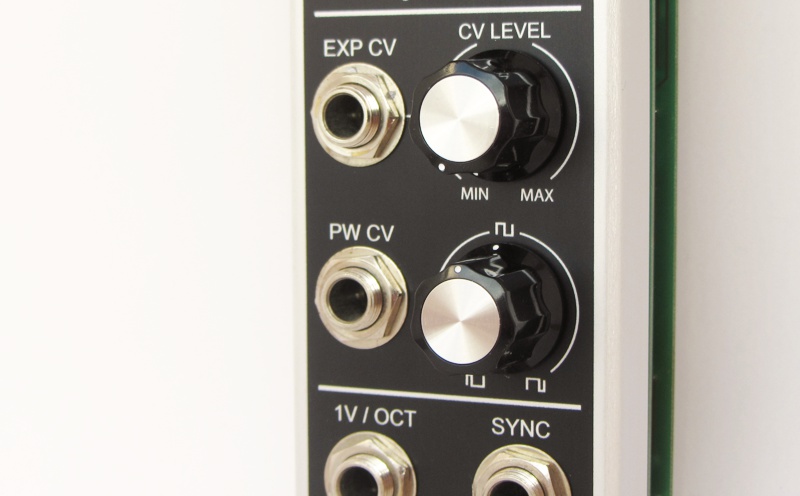

          • Exponential FM input with level control

          • Compact single-width format, ideal for small systems, as an auxiliary VCO, or for building multi-oscillator setups without taking up too much space
